A DUAL FUNCTION FREESTANDING & SNAP ON STRINGER SYSTEM & A DUAL FUNCTION BOLT ON STRINGER & SCREW DOWN SYSTEM

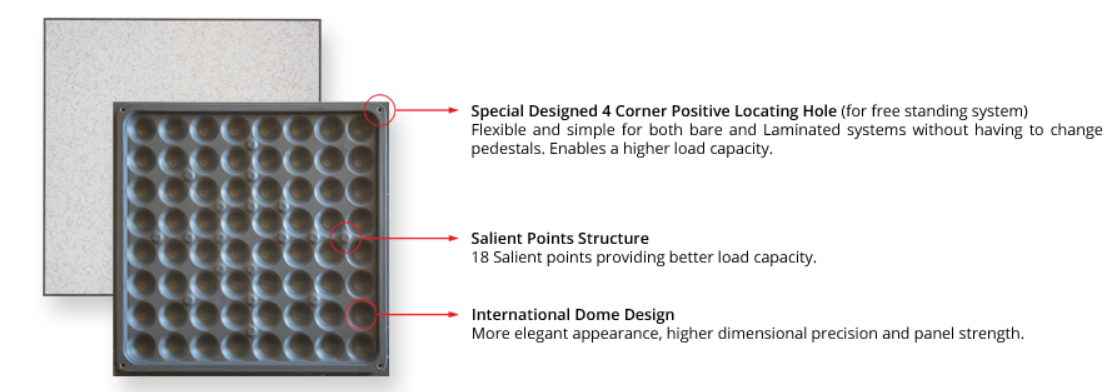

The BIS/FS/ST access floor panels are structurally rigid linear assemblies fabricated from non-combustible components and consists of high hardness top steel sheet, welded to a deep drawing steel bottom section of domed formation. The underside of the panel shall consist of a specially designed four corner self-locating and solid locking system. It has a 18 convex salient point structure and an international dome design.

All these additional design features result in the higher dimensional precision and panel strength.  The exterior and interior surface of the panel is corrosion protected. The core of the panel is filled with a non-combustible cementitious compound. The exterior of the panel is epoxy coated.

Download Info
Product Sustainability

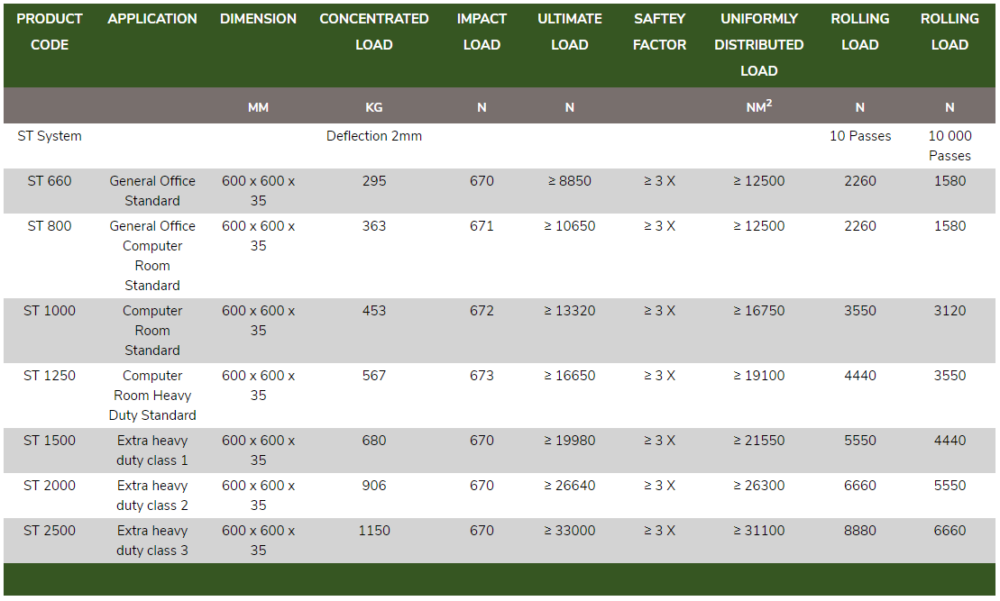

Bates Interior Solutions ST System

ST System

Freestanding System

ST System

Snap-On Stringer System

ST System

Bolt-On Stringer System

ST System

Screw-Down System
Bates Interior Systems - SuperTec ST System Free Standing
Bates Interior Systems - SuperTec ST System Snap On
Bates Interior Systems - SuperTec ST System Bolt On
Bates Interior Systems - SuperTec ST System Screw Down
Bates Interior Solutions ST System

Encapsulated Chipboard Raised Floor

Encapsulated Chipboard Raised Floor panel

Encapsulated wood-core raised floor is fully wrapped around by hot-dipped galvanized steel. The top and bottom steel sheet is pressed and riveted, with high-density chipboard as the inside core.

Model: FS800-FS1500
Size: 600*600mm
Materials: Chipboard core, galvanized steel
Installation: Corner lock systems, stringer systems

Specification

Type Size Ultimate Load Safety Factor Working Load Maximum Deflection Hard/Soft Body Impacts Fire Resistance
MM KN KN
Class 2 600*600*30mm ≥6KN 2 ≥3.0KN Class B Good Class Bf1-s1
Class 3 600*600*30mm ≥8KN 2 ≥4.0KN Class B Good Class Bf1-s1

Encapsulated Calcium Sulphate Panel

Encapsulated Calcium Sulphate Panel

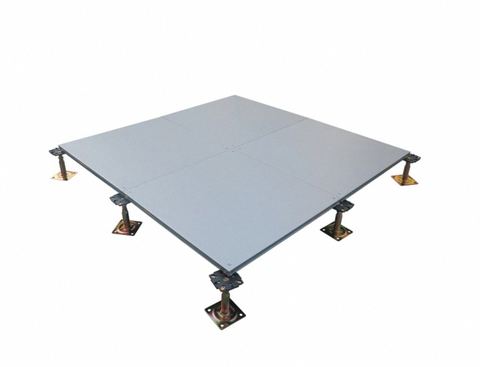

Encapsulated panel is fully wrapped around by hot-dipped galvanized steel. The top and bottom steel sheet is pressed and riveted, with calcium sulphate board or chipboard as the inside core.

Model: FS800-FS1500
Size: 500*500mm, 600*600mm
Materials: calcium sulphate board, galvanized steel
Installation: corner lock systems, stringer systems

The raised floor will be with a safety factor of three times the concentrated (design) load, and is capable of meeting static and dynamic loads per CISCA Platform (Raised Access) Floors Performance Specification.

Specification

Type Size Ultimate Load Safety Factor Working Load Maximum Deflection Hard/Soft Body Impacts Fire Resistance
MM KN KN
Class 1 600*600*26mm ≥4KN 2 ≥2.0KN Class A Good Class A1f1
Class 2 600*600*30mm ≥6KN 2 ≥3.0KN Class A Good Class A1f1
Class 3 600*600*30mm ≥8KN 2 ≥4.0KN Class A Good Class A1f1

Anti static Calcium Sulphate Floor

Anti static Calcium Sulphate Floor panel

Anti static calcium sulphate floor is a sandwich structure. Bottom finish is galvanized steel sheet(aluminum foil), top finish are anti-static coverings, such as high pressure laminate (HPL), conductive PVC tile. Enclosing a high strength calcium sulphate board as core. The 4 edges are wrapped with PVC trims as protection.

Model: FS1000-FS2500
Size: 600*600mm
Materials: calcium sulphate core, galvanized steel
Covering: conductive PVC/vinyl, anti static HPL
Installation: stringer system

The raised floor will be with a safety factor of three times the concentrated (design) load, and is capable of meeting static and dynamic loads per CISCA Platform (Raised Access) Floors Performance Specification.

Specification

Type Size Ultimate Load Safety Factor Working Load Maximum Deflection Hard/Soft Body Impacts Fire Resistance
MM KN KN
Class 3 600*600*30-40mm ≥8KN 3 ≥2.6KN Class A Good Class A1f1
Class 4 600*600*30-40mm ≥9KN 3 ≥3.0KN Class A Good Class A1f1
Class 5 600*600*30-40mm ≥10KN 3 ≥3.3KN Class A Good Class A1f1
Class 6 600*600*30-40mm ≥12KN 3 ≥4.0KN Class A Good Class A1f1
