THE TRUE MULTIFUNCTIONAL RAISED ACCESS FLOOR SYSTEM

The new Solid Lock system caters for every possible flooring combination without requiring different components for every solution. It is therefore a free standing, screw down, bolt on and snap on flooring solution, that is suitable for anything from general office environments to heavy duty computer rooms.

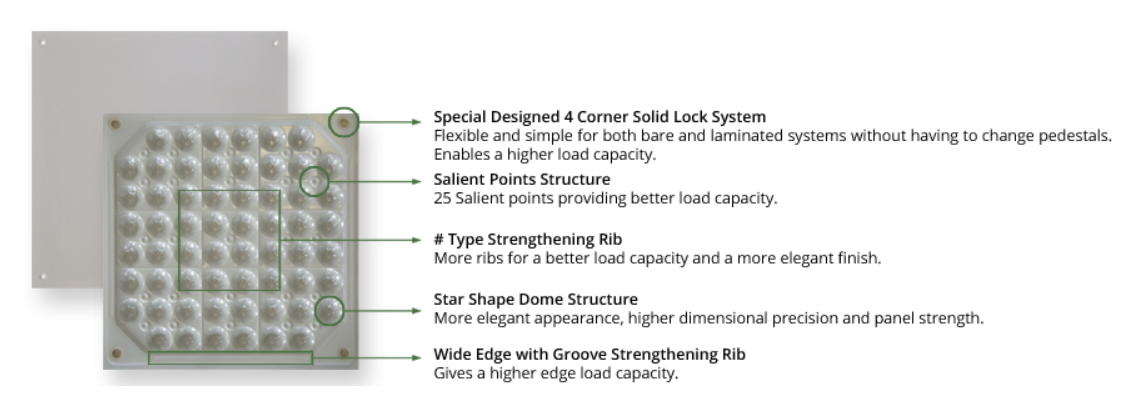

The Solid Lock access floor panels are structurally rigid linear assemblies fabricated from non-combustible components and consists of high hardness top steel sheet, welded to a deep drawing steel bottom section of domed formation. The underside of the panel shall consist of a specially designed four Corner self-locating and solid locking system. It has a 25 convex salient point structure. The panel has a # Type strengthening rib and a Star Shaped Dome Structure, all these additional design features result in the higher dimensional precision and panel strength. In addition to this the edges of the panel have a concaved strengthening rib to provide higher edge load capacity.

Bates Interior Solutions

Supertec Solid Lock

Freestanding System

Supertec Solid Lock

Screw-Down System

Supertec Solid Lock

Snap-On Stringer System

Supertec Solid Lock

Bolt-On Stringer System
Bates Interior Systems - SuperTec Solid Lock System Freestanding
Bates Interior Systems - SuperTec Solid Lock System Screw Down
Bates Interior Systems - SuperTec Solid Lock System Snap On
Bates Interior Systems - SuperTec Solid Lock System Bolt On
Bates Interior Solutions Solid Lock System
