THE ORIGINAL MULTI APPLICATION RAISED ACCESS FLOOR SYSTEM

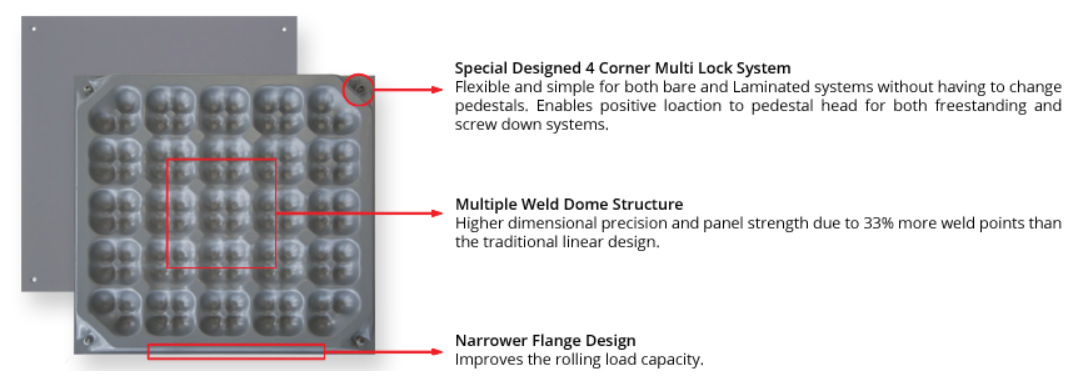

The Multi Lock access floor panels are structurally rigid linear assemblies fabricated from non-combustible components and consists of high hardness top steel sheet, welded to a deep drawing steel bottom section of domed formation. The underside of the panel shall consist of a specially designed four Corner self-locating and multi locking system. It has 96 conave welded domes which is 33% more than the traditional linear design. The panel has a narrower flange that improves the rolling load capacity of the system. All these additional design features result in the higher dimensional precision and panel strength.

The exterior and interior surface of the panel is corrosion protected. The core of the panel is filled with a non-combustible cementitious compound.

The exterior of the panel is epoxy coated.

Bates Interior Solutions Multi Lock SuperTec Accessed Floor System

Supertec Multi Lock

Freestanding System

Supertec Multi Lock

Screw-Down System

Supertec Multi Lock

Bolt-On System (Multi Lock Head)

Supertec Multi Lock

Bolt-On System (Steel Flat Head)
